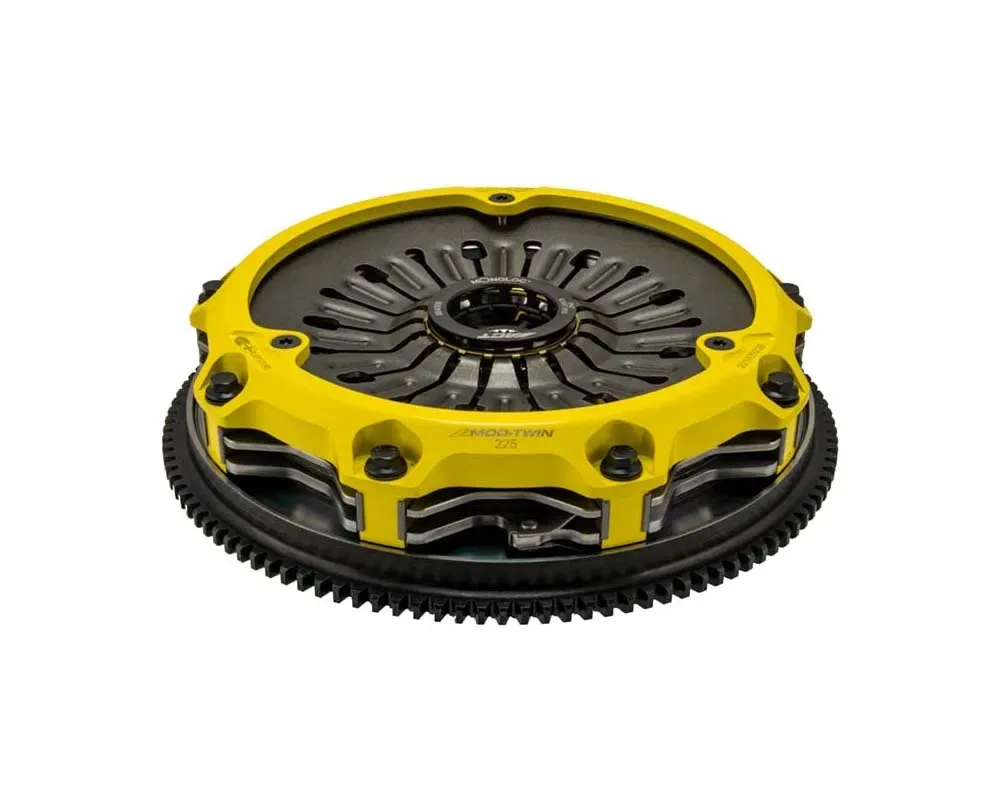

ACT Mod-Twin 225 XX Race Mitsubishi Evolution X 2008-2015

If you're looking to seriously upgrade your ride, the Advanced Clutch Mod-Twin 225 XX Rigid Race Kit is a game changer for high-powered AWD vehicles. This kit is designed to handle those aggressive launches and rapid shifts that get your heart racing. What sets it apart? Well, it’s got double the ceramic friction surfaces paired with a solid Mono-Drive hub, making it modular and easy to work with. You won’t find any fluff here—just solid engineering that gets the job done.

The diaphragm spring in this kit undergoes a four-stage heat treatment process, which means you’ll get a consistent pedal feel that doesn’t wear out after a few runs. And those puck-style friction plates? They’re made from high-quality ceramic material that not only provides a high friction coefficient but also boasts superior heat capacity and longevity. So, you can push your limits without worrying about burning through your clutch too quickly.

Torque transfer is smooth and efficient thanks to the Mono-Drive chrome-moly hub, which is heat-treated for added strength and durability. This design extends the life of your input shaft with a continuous spline, which is a nice touch for anyone who likes to keep their car in top shape. Plus, the lightweight and rigid design means quicker shifts and hassle-free service when you need to make adjustments.

What’s in the box? You get a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, and those robust puck-style ceramic friction plates. The kit also includes a rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool, and pilot bearing if you need it. And don’t forget, Mod-Twin clutches are fully rebuildable, so if something wears out, you can easily get the parts you need.

Installation Instructions:

• For Instructions CLICK HERE

Features:

• Predictable aggressive engagement with increased pedal effort—perfect for those who like to feel the road.
• Built with a forged aluminum cover and premium friction materials, making it tough enough to handle the most demanding conditions.
• Designed for maximum performance and heat tolerance, so you can push your car without fear.
• Great for drag, road, or rally racing—whatever your passion is.
• ACT has really thought through the Mod-Twin design, offering unique solutions to common issues found in twin disc clutches, resulting in a durable, serviceable clutch with a high torque capacity. Plus, it’s all SFI certified and clamp load tested.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: Yes
• Pressure Plate Type: Maxx Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.8 in (225 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type: Sprung Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Product Weight: 28.1 lbs
• SFI: 1.2
• Torque Capacity: 1340 ft/lbs (2.75 times over OE)

Fits: Mitsubishi Evolution X (2008-2015) T3R-M07 ACT Mod-Twin 225 XX Rigid Race. This kit is built for those who demand performance and durability from their ride.
