034Motorsport X34 4″ Carbon Fiber Open-Top Intake Bundle for Audi TTRS & RS3 2017+

034Motorsport X34 Carbon Fiber Open-Top Intake Bundle

The 034Motorsport X34 Carbon Fiber Open-Top Intake Bundle is engineered specifically for the 2.5 TFSI EVO engine found in the Audi TTRS (2018-2022) and RS3 (2017-2023). This intake system is designed to enhance airflow and reduce pressure drop compared to the factory airbox, making it an ideal upgrade for those looking to maximize performance, especially when paired with upgraded turbochargers.

Key Features

• High-quality carbon fiber construction with a high gloss epoxy finish
• OEM+ fit and finish for seamless integration into the engine bay
• 4" diameter intake tube for improved airflow
• High-performance double-layer pleated cotton air filter
• Stainless steel heat shield to minimize intake air temperature

Performance Enhancements

The X34 intake system features a CFD-optimized carbon fiber intake tube that replaces the restrictive factory plastic hose. This design allows for smoother airflow transitions, significantly reducing bottlenecks and enhancing turbo inlet performance. The 4" diameter intake tube accommodates upgraded turbo inlets, ensuring that even high-performance builds can benefit from increased airflow.

To combat heat soak, the open-top upper airbox and stainless steel heat shield work in tandem to draw in cooler air while shielding the intake tube from engine heat. This setup not only reduces intake air temperature but also increases throttle response and engine sound, providing a more engaging driving experience.

Filter Design

The kit includes a high-flow conical air filter that boasts an enlarged filtration surface area, promoting superior airflow without compromising filtration quality. Tested in applications exceeding 800HP, this filter ensures optimal performance while maintaining OEM-level filtration standards.

Installation and Compatibility

The X34 Carbon Fiber Open-Top Intake Bundle is designed for easy installation, utilizing factory mounting points for a straightforward fit. It includes high-temperature silicone couplers that allow compatibility with both OEM and aftermarket turbo inlets.

Fitment

• Audi RS3 8V.5 (2017-2022)
• Audi RS3 8Y (2023-Present) - Note: Minor trimming of the radiator support necessary for the carbon air duct
• Audi TTRS 8S (2018-2022)

What's Included

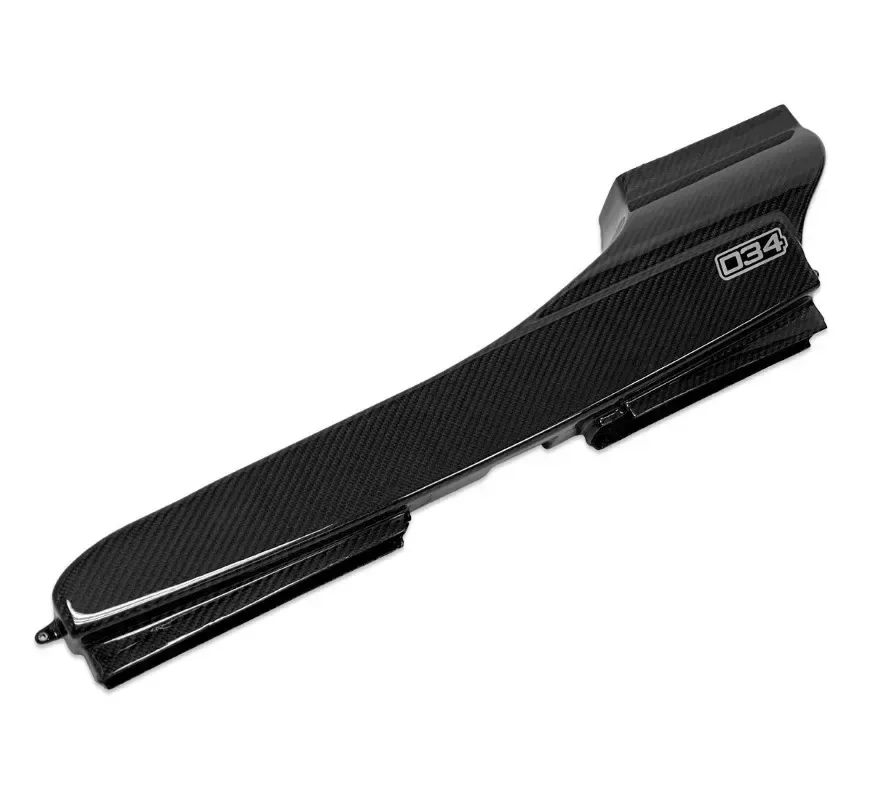

• X34 Carbon Fiber Fresh Air Duct
• X34 Carbon Fiber Lower Airbox
• X34 Carbon Fiber Open-Top Upper Airbox
• X34 Carbon Fiber 4" Air Intake Tube
• 034Motorsport Double-Layer Pleated Air Filter
• 034Motorsport Stainless Steel Heat Shield
• 034Motorsport Silicone Coupler
• Installation Hardware
